Description:The SLG59M1649V is a self-powered, high-performance, 23 mΩ pFET load switch designed for 1.5 to 5.5 V power rail applications up to 4 A. When enabled, internal reverse-current protection will quickly open the switch in the event of a reverse-voltage condition is detected (a VOUT + 50 mV > VIN condition opens the switch). Upon the detection of a reverse condition, an open-drain FAULT output is asserted. In the event the VIN voltage is too low, the load switch also contains an internal UVLO threshold monitor
Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) for the SLG59M1649V. It suggests using a 4-layer PCB with a solid ground plane, placing the device near the center of the board, and using thermal vias to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a heat sink or a thermal shield to reduce the junction temperature.
Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions. It's essential to consult the datasheet and application notes for more information.
To troubleshoot issues with the POR function, check the power supply voltage, ensure that the VCC pin is properly connected, and verify that the POR pin is not being pulled low externally. Also, review the POR timing and voltage threshold settings to ensure they are within the recommended specifications.
Using a different package type may affect the device's thermal performance, pinout, and PCB layout. The QFN package has a different thermal resistance and pinout compared to the TQFN package. Ensure that the PCB design and thermal management system are adapted to the specific package type used.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59M1649V Overview

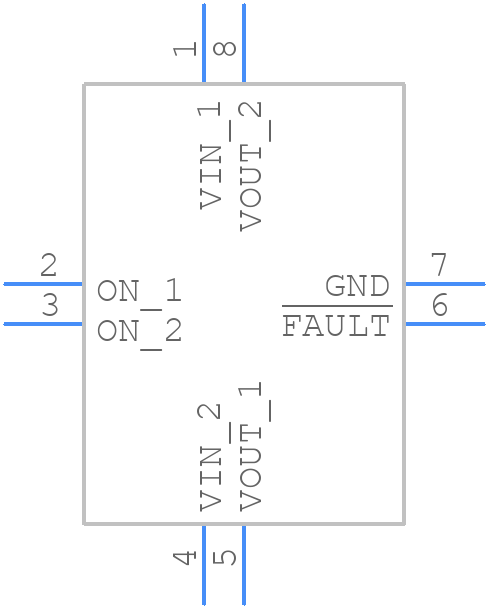

Use the download button to access the SLG59M1649V schematic symbol, PCB footprint, and 3D model.
