Samtec provides a recommended PCB layout and land pattern in their Application Notes (AN-105) and PCB Layout Recommendations (PLR-105) documents, which can be found on their website.
To ensure reliable connections and prevent damage, follow Samtec's recommended mating and unmating procedures, use a controlled torque driver, and keep the connectors clean and free of debris.
The maximum operating temperature range for SLM-143-01-G-S is -55°C to +125°C, as specified in the datasheet. However, it's essential to consider the temperature rating of the specific application and ensure the connector meets those requirements.
Yes, SLM-143-01-G-S is designed to withstand high-vibration and harsh environments. However, it's crucial to follow Samtec's guidelines for vibration testing and ensure the connector is properly secured to the PCB and mated correctly.
Handle SLM-143-01-G-S by the reels or trays, avoid touching the contacts, and store them in a clean, dry environment. Follow Samtec's recommended storage and handling procedures to ensure long-term reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLM-143-01-G-S Overview

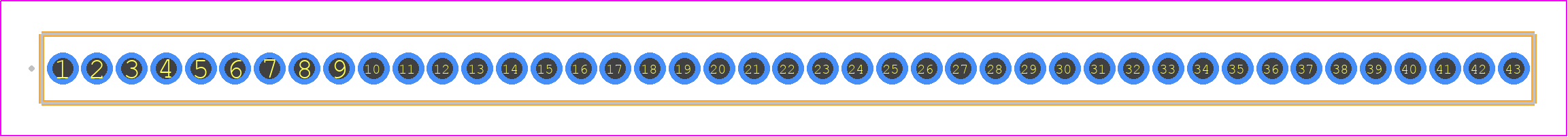

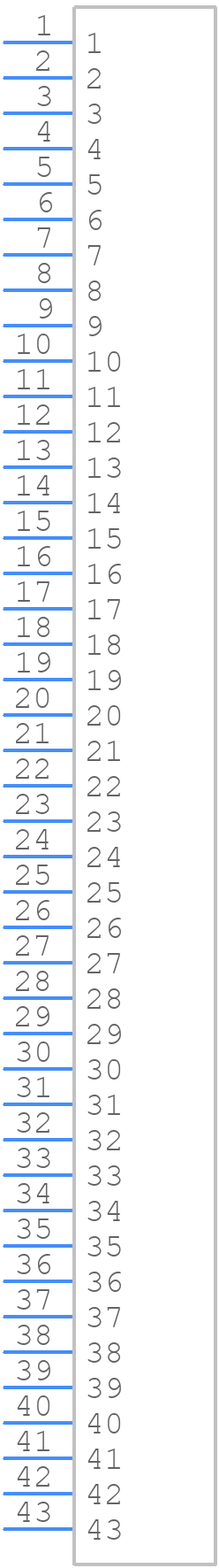

Use the download button to access the SLM-143-01-G-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SLM-1,
or try a keyword search, such as Headers and Edge Type Connectors
