SLM6800 - SLM

Description: Up to 20V Input Voltage Protection Fully Integrated Power MOSFE Up to 92% Output Efficiency Maximum 1.5A Adjustable Output Current Input Current Automatic Identification, Adapter Adaptation Chip High Temperature Automatic Current Limiting and Over Temperature Shutdown Protection

Download SLM6800 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SLM6800 model

Email notifications will be applied after download.

Send part feedback

Symbol

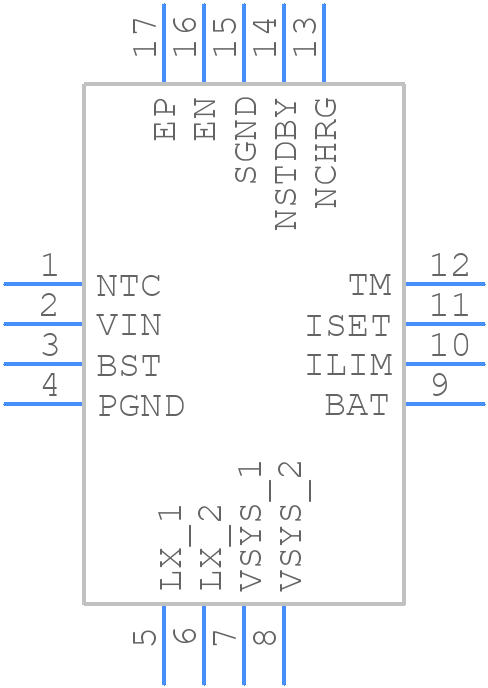

SLM6800 - SLM - PCB symbol

PCB Footprints

SLM6800 - SLM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN4X4-16L

3D Models

SLM6800 - SLM - 3D model - Quad Flat No-Lead - QFN4X4-16L

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLM6800
Part Number SLM6800
Manufacturer SLM
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN4X4-16L
Released Date Jul 28, 2025
Last Modified Date Jul 28, 2025 4:59 AM UTC
Pinout / Pin List Click Here (Member Only)

SLM6800 Details

Manufacturer Part Number:
SLM6800
Manufacturer:
(UNAVAILABLE)
