SLM9670AQ20FW1311XTMA1 - Infineon

Description: Security ICs / Authentication ICs Standardized and certified TPM 2.0 security solution for industrial & demanding applications

Download SLM9670AQ20FW1311XTMA1 Model
Schematic

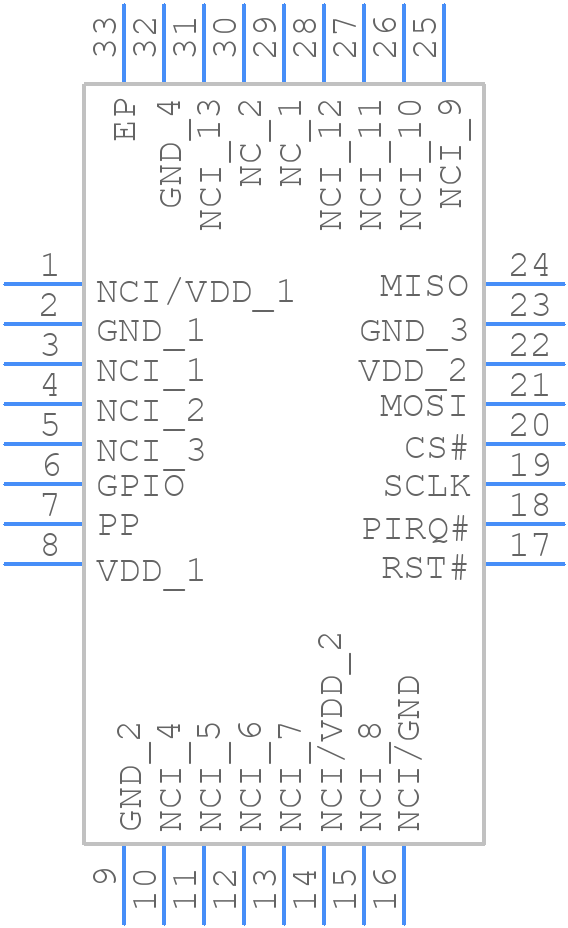

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLM9670AQ20FW1311XTMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-32-13+
click to zoom
3D Models
SLM9670AQ20FW1311XTMA1 - Infineon  - 3D model - Quad Flat No-Lead - PG-VQFN-32-13+
click to zoom

SLM9670AQ20FW1311XTMA1 Details

  • Manufacturer Part Number:

    SLM9670AQ20FW1311XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    VQFN-32

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    ALSO OPERATES WITH 3.3V SUPPLY

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

SLM9670AQ20FW1311XTMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal via under the IC to dissipate heat efficiently.
  • Use the EN pin to control the power-up sequence. Ensure the input voltage is stable before enabling the device. Also, use a pull-up resistor on the EN pin to prevent unwanted resets.
  • The maximum allowed voltage on the input pins is 6.5V, exceeding which may cause damage to the device.
  • Check the input voltage, EN pin, and power-good signal. Verify the input voltage is within the recommended range, the EN pin is properly configured, and the power-good signal is not asserted.
  • The device is rated for operation up to 125°C. However, ensure proper thermal design and consider derating the device's performance at high temperatures.
