SLS32AIA010MLUSON10XTMA2 - Infineon

Description: Security ICs / Authentication ICs

Download SLS32AIA010MLUSON10XTMA2 Model

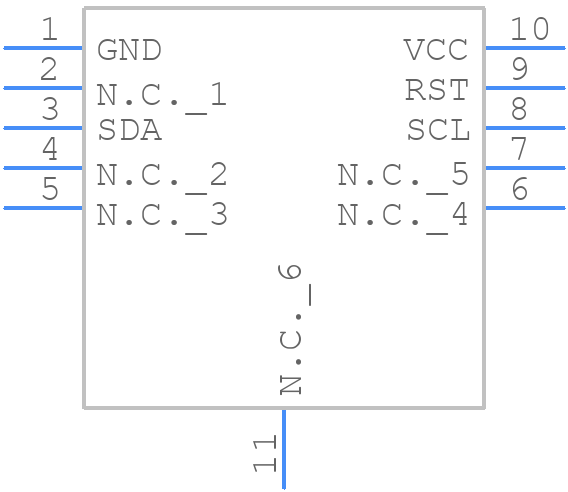

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLS32AIA010MLUSON10XTMA2 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-USON
click to zoom
3D Models
SLS32AIA010MLUSON10XTMA2 - Infineon  - 3D model - Small Outline No-lead - PG-USON
click to zoom

SLS32AIA010MLUSON10XTMA2 Details

  • Manufacturer Part Number:

    SLS32AIA010MLUSON10XTMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    USON-10

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

SLS32AIA010MLUSON10XTMA2 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves using a 4-layer board with a solid ground plane, placing thermal vias under the package, and using a thermal pad connected to the ground plane.
  • To ensure reliable operation across the entire temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
  • The critical timing parameters for the SLS32AIA010MLUSON10XTMA2 include clock-to-output delay, setup time, and hold time. To ensure these parameters are met, carefully review the datasheet and application notes, and use simulation tools to verify the design. Additionally, consider using a timing analyzer or signal integrity analysis to validate the design.
  • To handle power sequencing and power-on reset for the SLS32AIA010MLUSON10XTMA2, follow the recommended power-up and power-down sequences outlined in the datasheet. Ensure that the power supplies are stable and within the recommended voltage range before applying clock and input signals. Additionally, consider using a power-on reset circuit to ensure a clean reset signal.
  • The SLS32AIA010MLUSON10XTMA2 has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures. To prevent latch-up, ensure that the device is operated within the recommended voltage and current ranges, and avoid applying excessive voltage or current to the inputs or outputs.
