The recommended footprint and land pattern for the SLVU2.8-8BTG can be found in the Littelfuse application note AN9313, which provides detailed guidelines for PCB layout and assembly.
To ensure proper soldering, follow the recommended soldering profile and guidelines outlined in the Littelfuse application note AN9313. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and avoid applying excessive force or pressure during the soldering process.
The SLVU2.8-8BTG has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures.
Yes, the SLVU2.8-8BTG is suitable for high-reliability applications. Littelfuse provides a range of products that meet the requirements of various industries, including aerospace and automotive. However, it's crucial to consult with Littelfuse's technical support and review the device's specifications to ensure it meets the specific requirements of your application.
Handle the SLVU2.8-8BTG with care to avoid mechanical stress, and store it in a dry, cool place away from direct sunlight. Avoid exposing the device to moisture, extreme temperatures, or physical shock. Follow proper electrostatic discharge (ESD) precautions when handling the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLVU2.8-8BTG Overview

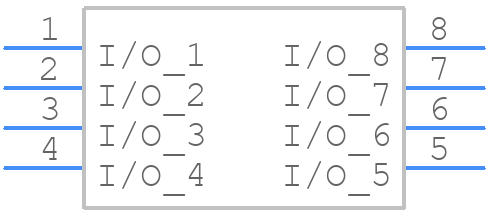

Use the download button to access the SLVU2.8-8BTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLVU2,
or try a keyword search, such as Transient Suppressors
