SLW-128-01-F-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

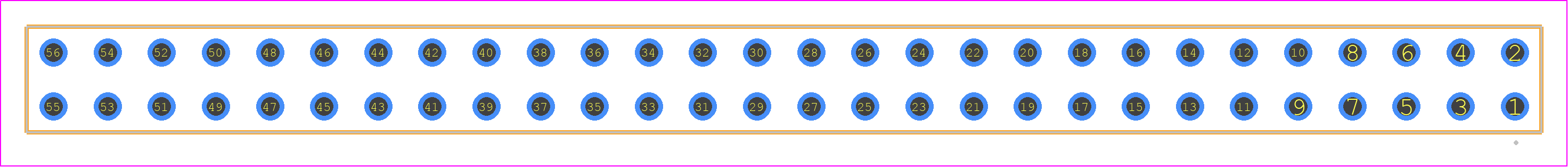

SLW-128-01-F-D - SAMTEC PCB footprint - Other - Other - SLW-128-01-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-128-01-F-D
Part Number SLW-128-01-F-D
Manufacturer SAMTEC
Pin Count 56
Part Category Connector
Package Category Other
Footprint Name Other - SLW-128-01-X-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-128-01-F-D Details

Manufacturer Part Number:
SLW-128-01-F-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.195 inch
Body Depth:
0.18 inch
Body Length:
2.8 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD FLASH
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
5.2 A
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
56

SLW-128-01-F-D Frequently Asked Questions (FAQs)

The recommended mating sequence for SLW-128-01-F-D is to mate the connectors in a perpendicular orientation, ensuring the guides are aligned, and then rotate the connectors into their final mated position.
Yes, the SLW-128-01-F-D is designed to withstand high-vibration environments. Samtec's SLW series connectors are tested to meet the IEC 61373 Cat II vibration standard, making them suitable for use in harsh environments.
The SLW-128-01-F-D has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including high-temperature environments.
Yes, the SLW-128-01-F-D is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.
The typical lead time for delivery of the SLW-128-01-F-D connector varies depending on the quantity and availability. However, Samtec typically offers a lead time of 2-4 weeks for standard orders, and expedited options are available for rush orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SLW-128-01-F-D Overview

Use the download button to access the SLW-128-01-F-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SLW-1, or try a keyword search, such as Headers and Edge Type Connectors
