SLW-147-01-L-D - SAMTEC

SLW-147-01-L-D Details

• Manufacturer Part Number:

  SLW-147-01-L-D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Direct Group:

  CH45050802014090100703560108013YY03YY04090204

• Similar Group:

  CH45050802014090100703560108013YY03YY04

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  10

• Body Breadth:

  0.195 inch

• Body Depth:

  0.18 inch

• Body Length:

  4.7 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  TIN OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

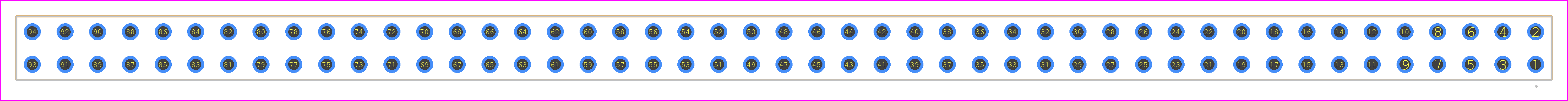

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  10u inch

• Rated Current (Signal):

  5.2 A

• Terminal Length:

  0.115 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  94
