SLW-150-01-G-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

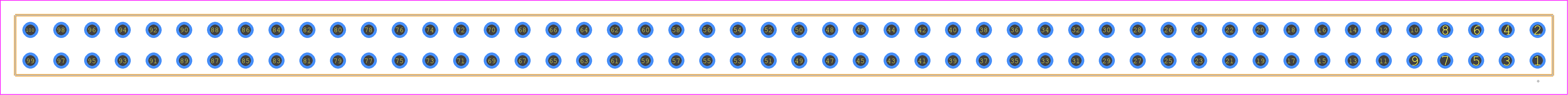

SLW-150-01-G-D - SAMTEC PCB footprint - Other - Other - SLW-150-01-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-150-01-G-D
Part Number SLW-150-01-G-D
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SLW-150-01-X-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-150-01-G-D Details

Manufacturer Part Number:
SLW-150-01-G-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
6 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.195 inch
Body Depth:
0.18 inch
Body Length:
5 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
20u inch
Rated Current (Signal):
5.2 A
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
100

SLW-150-01-G-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SLW-150-01-G-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SLW-150-01-G-D connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 Hz at 2.5 mm amplitude.
The maximum operating temperature of the SLW-150-01-G-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
Yes, the SLW-150-01-G-D connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds to ensure reliable connections.
The SLW-150-01-G-D connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. If you need a connector for a wet environment, consider using a sealed or waterproof connector instead.
