SM-42TW202 - Nidec Copal

Description: 2 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment , −65°C ~ 150°C

Download SM-42TW202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

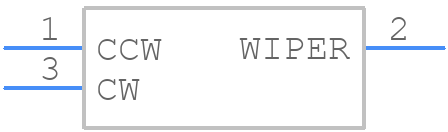

SM-42TW202 - Nidec Copal - PCB symbol
click to zoom
PCB Footprints
SM-42TW202 - Nidec Copal PCB footprint - Other - Other - SM-42TW202-2
click to zoom
3D Models
SM-42TW202 - Nidec Copal - 3D model - Other - SM-42TW202-2
click to zoom

SM-42TW202 Details

  • Manufacturer Part Number:

    SM-42TW202

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SCREW

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Sealed

  • Ganging Number:

    1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    11

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    5.1 mm

  • Package Length:

    4.8 mm

  • Package Style:

    SMT

  • Package Width:

    3.5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    85 °C

  • Resistance:

    2000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    TRIMMER

  • Size Code:

    1914

  • Surface Mount:

    YES

  • Technology:

    CERMET

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    J BEND

  • Tolerance:

    10%

  • Working Voltage:

    22.4 V

SM-42TW202 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the component on a thermal land with a minimum size of 10mm x 10mm, and using a thermal via array to dissipate heat efficiently.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or vibration during the soldering process.
  • The maximum operating temperature range for the SM-42TW202 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • Yes, the SM-42TW202 is designed to operate in humid environments, but it's recommended to follow the moisture sensitivity level (MSL) guidelines to prevent damage during assembly and storage.
  • Handle the SM-42TW202 by the edges to prevent damage, and store it in a dry, cool place away from direct sunlight. Avoid bending or flexing the component during handling.
