The recommended PCB layout involves keeping the component away from high-current paths and heat sources. A thermal pad on the bottom of the component helps with heat dissipation. A minimum of 2oz copper thickness and a 2-layer PCB is recommended. Ensure good airflow and consider adding thermal vias to improve heat dissipation.
Use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads. Avoid applying excessive force or pressure during assembly, as this can damage the component. Use a soldering technique that minimizes the risk of overheating or cold joints.
The SM-42TW203 is an ESD-sensitive device. Handle the component in an ESD-protected environment, and ensure that all equipment and personnel are grounded. Use ESD-protective packaging and follow proper handling procedures to prevent damage.
The SM-42TW203 is designed for general-purpose applications and may not be suitable for high-vibration or high-shock environments. If your application requires high-reliability in harsh environments, consider using a more ruggedized component or consulting with the manufacturer for custom solutions.
Store the SM-42TW203 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid exposing the component to temperatures above 30°C or humidity above 60%. Handle the component in a clean, dry environment, and avoid touching the component's leads or pins.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM-42TW203 Overview

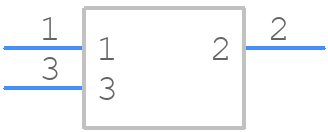

Use the download button to access the SM-42TW203 schematic symbol and PCB footprint.
