SM-42TW501 - Nidec Copal

Description: NIDEC COMPONENTS - SM-42TW501 - Trimpot, Multi Turn, RuO2 Cermet, Top Adjust, 500 ohm, Surface Mount, 11 Turns

Download SM-42TW501 Model

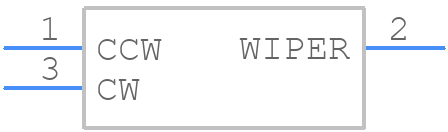

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM-42TW501 - Nidec Copal PCB footprint - Other - Other - SM-42TW501-2
click to zoom
3D Models
SM-42TW501 - Nidec Copal  - 3D model - Other - SM-42TW501-2
click to zoom

SM-42TW501 Details

  • Manufacturer Part Number:

    SM-42TW501

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SCREW

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Sealed

  • Ganging Number:

    1

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    11

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    5.1 mm

  • Package Length:

    4.8 mm

  • Package Style:

    SMT

  • Package Width:

    3.5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    85 °C

  • Resistance:

    500 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    TRIMMER

  • Size Code:

    1914

  • Surface Mount:

    YES

  • Technology:

    CERMET

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Shape:

    J BEND

  • Tolerance:

    10%

  • Working Voltage:

    11.2 V

SM-42TW501 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the component on a 2-layer or 4-layer PCB with a large copper area for heat dissipation. The copper area should be connected to a solid ground plane to ensure efficient heat transfer.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a secure mounting method, such as screwing or adhesive bonding, and to ensure that the PCB is properly secured to the chassis or enclosure. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce the transmission of vibrations to the component.
  • The maximum allowable torque for the screw terminals is 0.5 N·m (4.4 lb·in). Exceeding this torque may damage the terminals or the PCB.
  • The SM-42TW501 is designed to operate in a temperature range of -40°C to 85°C and humidity up to 60%. However, it is recommended to take precautions to prevent moisture ingress and to ensure good airflow around the component to prevent overheating.
  • The recommended soldering profile for the SM-42TW501 involves a peak temperature of 260°C (500°F) and a dwell time of 3-5 seconds. It is recommended to use a soldering iron with a temperature control and to avoid applying excessive heat or force to the component.
