SM13117EL - Bourns

Description: Power Transformers FLYBACK TRANS 13W POE,1.5K VRM,36-72 Vdc 250 kHz , output:12 Vdc @ 1.08 A .

Download SM13117EL Model

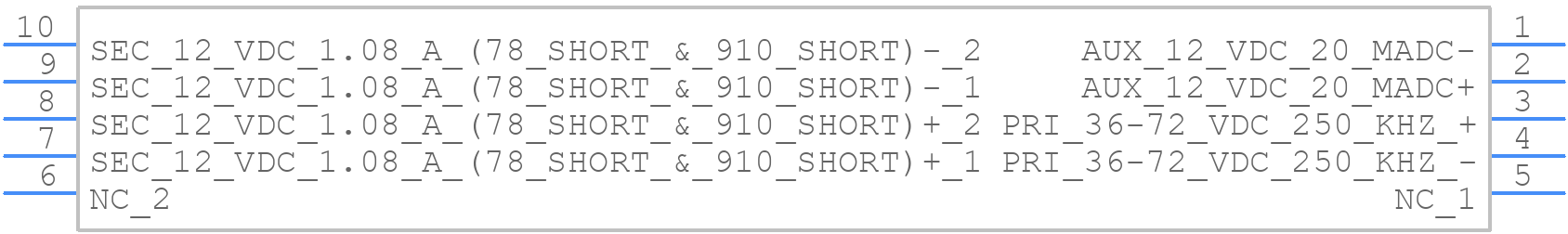

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM13117EL - Bourns PCB footprint - Other - Other - SM13117EL-5
click to zoom
3D Models
SM13117EL - Bourns  - 3D model - Other - SM13117EL-5
click to zoom

SM13117EL Details

  • Manufacturer Part Number:

    SM13117EL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.7

  • Additional Feature:

    LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO

  • Height:

    12.7 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • JESD-609 Code:

    e3

  • Length:

    17.75 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    13 W

  • Primary Inductance:

    127 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13.5 mm

SM13117EL Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them to minimize noise and crosstalk.
  • Use a thermally conductive PCB material, ensure good airflow, and consider using a heat sink or thermal interface material. Also, derate the component's power rating according to the temperature derating curve in the datasheet.
  • A reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds is recommended. Avoid wave soldering and use a solder with a melting point above 217°C (423°F).
  • Yes, but ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Also, consider using a vibration-resistant mounting method, such as a flexure-based design.
  • Use a signal generator and oscilloscope to verify the input and output signals. Check for proper power supply decoupling, ensure the component is properly soldered, and verify the PCB layout meets the recommended guidelines.
