SM1605e3/TR13 - Microsemi Corporation

Description: 11V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 16-SO

Download SM1605e3/TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

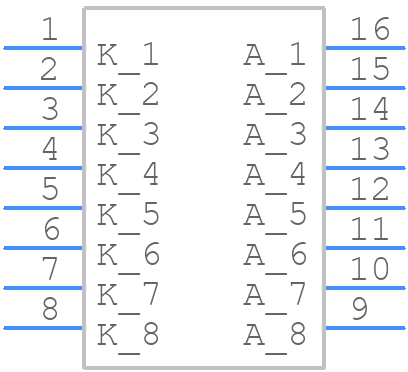

SM1605e3/TR13 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

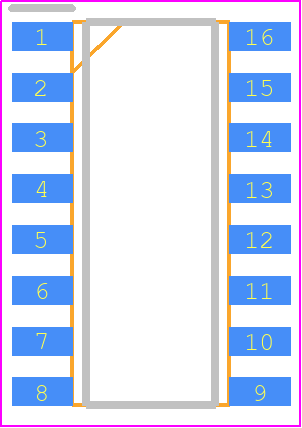

SM1605e3/TR13 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - S16-4148E3/TR7
click to zoom
3D Models
SM1605e3/TR13 - Microsemi Corporation - 3D model - Small Outline Packages - S16-4148E3/TR7
click to zoom

SM1605e3/TR13 Details

  • Manufacturer Part Number:

    SM1605E3/TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Breakdown Voltage-Min:

    6 V

  • Clamping Voltage-Max:

    11 V

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G16

  • Non-rep Peak Rev Power Dis-Max:

    300 W

  • Number of Elements:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    20 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

SM1605e3/TR13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and EMI.
  • The SM1605E3/TR13 requires a bias voltage of 3.3V or 5V. Ensure the bias voltage is stable and within the recommended range. Use a voltage regulator or a voltage reference to maintain a stable bias voltage.
  • The SM1605E3/TR13 is rated for operation from -40°C to 125°C. However, it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Ensure the ESD protection devices are rated for the maximum voltage and current of the SM1605E3/TR13.
  • Use a 50Ω termination for the input and output signals. For high-speed signals, use a 50Ω transmission line with a 100Ω differential termination.
