ProTek Devices recommends a PCB layout with a solid ground plane, short lead lengths, and a low-inductance path for the TVS diode to ensure optimal performance and ESD protection.
Yes, the SM16LC24-LF is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures, so careful consideration should be given to the specific application requirements.
The SM16LC24-LF is designed to withstand multiple ESD strikes, but its performance may degrade over time. ProTek Devices recommends following the IEC 61000-4-2 standard for ESD testing and ensuring that the device is properly soldered and handled to minimize the risk of damage.
Yes, the SM16LC24-LF can be used in conjunction with other ESD protection devices, such as TVS diodes or ESD arrays, to provide additional protection for sensitive components. However, careful consideration should be given to the overall protection scheme to avoid over-voltage or over-current conditions.
The typical response time of the SM16LC24-LF to an ESD event is in the range of 1-10 nanoseconds, depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM16LC24-LF Overview

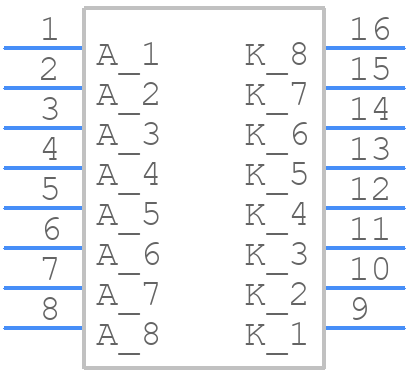

Use the download button to access the SM16LC24-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM16L,
or try a keyword search, such as Transient Suppressors
