SM30T15CAY - STMicroelectronics

SM30T15CAY Details

• Manufacturer Part Number:

  SM30T15CAY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

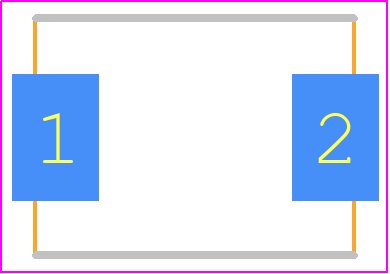

• Package Description:

  SMC, 2 PIN

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Factory Lead Time:

  53 Weeks, 1 Day

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Additional Feature:

  MIL-STD-750

• Breakdown Voltage-Max:

  15.8 V

• Breakdown Voltage-Min:

  14.3 V

• Breakdown Voltage-Nom:

  15.05 V

• Clamping Voltage-Max:

  21.5 V

• Configuration:

  SINGLE, 1 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JEDEC-95 Code:

  DO-214AB

• JESD-30 Code:

  R-PDSO-C2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  3000 W

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  BIDIRECTIONAL

• Reference Standard:

  AEC-Q101; IEC-61000-4-2, 4-4; ISO 7637-2

• Rep Pk Reverse Voltage-Max:

  13 V

• Reverse Current-Max:

  0.2 µA

• Reverse Test Voltage:

  13 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  C BEND

• Terminal Position:

  DUAL
