SM43P01EL - Bourns

Description: 10 GbE Chip LAN Transformer Module

Download SM43P01EL Model

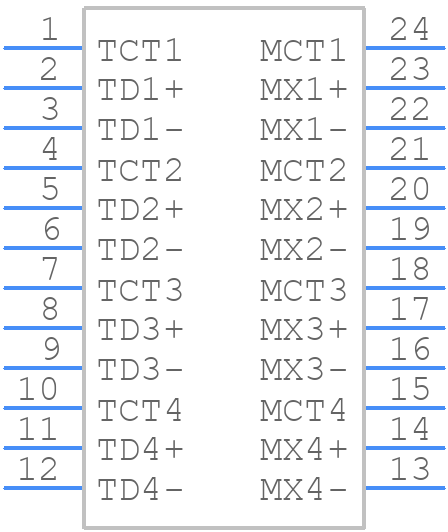

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM43P01EL - Bourns PCB footprint - Other - Other - SM43P01EL-1
click to zoom
3D Models
SM43P01EL - Bourns  - 3D model - Other - SM43P01EL-1
click to zoom

SM43P01EL Details

  • Manufacturer Part Number:

    SM43P01EL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.05

  • Application:

    LAN

  • Height:

    4.1 mm

  • Isolation Voltage:

    1500 V

  • JESD-609 Code:

    e3

  • Length:

    16.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Primary Inductance:

    120 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Width:

    10.3 mm

SM43P01EL Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them to minimize noise and crosstalk.
  • Use a thermally conductive PCB material, ensure good airflow, and consider using a heat sink or thermal interface material. Also, derate the device's power rating according to the temperature derating curve in the datasheet.
  • A reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds is recommended. Avoid wave soldering or hand soldering, as it may damage the device.
  • Yes, but ensure the device is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Also, consider using a vibration-resistant mounting method, such as a screw or clip, to prevent the device from detaching.
  • Check the input voltage, output load, and PCB layout for any issues. Use an oscilloscope to measure the output waveform and verify it meets the expected specifications. Consult the datasheet and application notes for troubleshooting guidelines.
