SM51108PEL - Bourns

Description: BOURNS - SM51108PEL - TRANSFORMER, PULSE, 1CT:1CT, 350UH, SMD

Download SM51108PEL Model

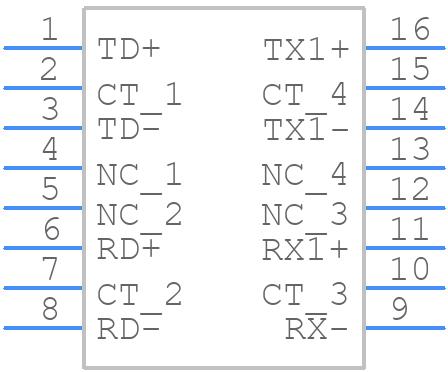

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM51108PEL - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - SM51108PEL
click to zoom
3D Models
SM51108PEL - Bourns  - 3D model - Small Outline Packages - SM51108PEL
click to zoom

SM51108PEL Details

  • Manufacturer Part Number:

    SM51108PEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Application:

    10/100 BASE-TX; ETHERNET; LAN

  • Approvals:

    IEEE

  • Height:

    5.65 mm

  • Isolation Voltage:

    1500 V

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    6.9 mm

SM51108PEL Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Ensure proper thermal management by providing adequate heat sinking and airflow. Avoid exceeding the maximum junction temperature (Tj) of 125°C. Use a thermal interface material (TIM) if necessary.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the IC as possible and connected between the input pin and the ground pin.
  • Use a shielded enclosure, keep the SM51108PEL away from noise sources, and ensure proper grounding. Implement EMI filters or common-mode chokes if necessary. Follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
  • The maximum allowed voltage transient on the input pins is ±20% of the nominal input voltage. Exceeding this may cause damage to the IC or affect its performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM51108PEL Overview

Use the download button to access the SM51108PEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM511, or try a keyword search, such as Pulse/Datacom Transformers
