SM51625EL - Bourns

Description: Transformers Audio & Signal XFMER 1.2A POE

Download SM51625EL Model

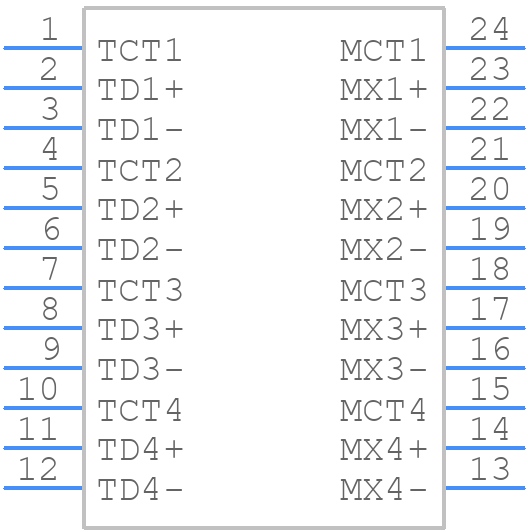

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

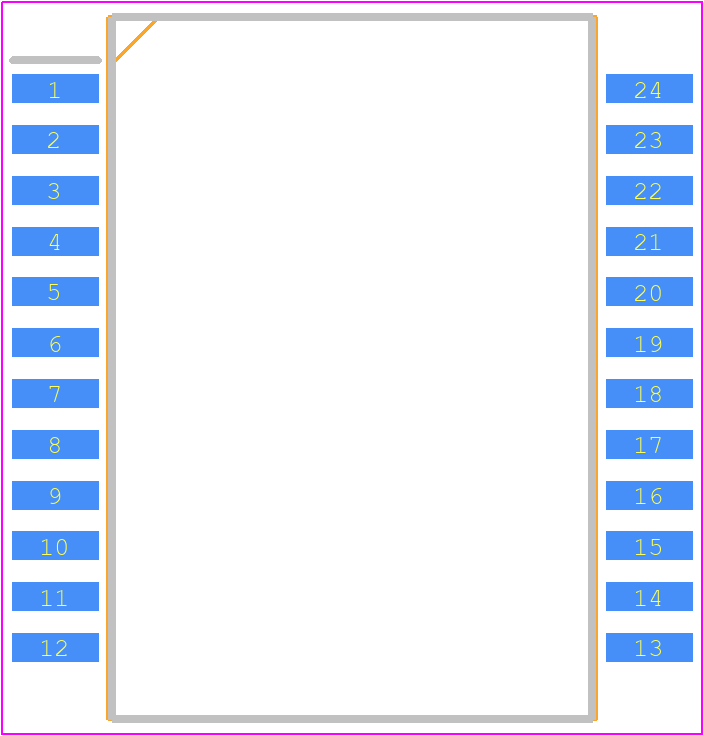

SM51625EL - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - SM51625EL
click to zoom
3D Models
SM51625EL - Bourns  - 3D model - Small Outline Packages - SM51625EL
click to zoom

SM51625EL Details

  • Manufacturer Part Number:

    SM51625EL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    8.25

  • Additional Feature:

    HEIGHT DIMENSION INCLUDING TERMINALS

  • Application:

    LAN; 10/100/1000 BASE-T; ETHERNET

  • Height:

    6 mm

  • Isolation Voltage:

    1500 V

  • JESD-609 Code:

    e3

  • Length:

    17.55 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    80 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    12.2 mm

SM51625EL Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Ensure proper thermal management by providing adequate heat sinking and airflow. Follow the recommended operating conditions and derating guidelines to prevent overheating and ensure reliable operation.
  • Use low-ESR capacitors with a value of 10-22uF for the input and output capacitors. The capacitor selection should be based on the specific application requirements and operating conditions.
  • Use a systematic approach to troubleshoot issues, starting with checking the input voltage, output voltage, and current. Verify the PCB layout and component selection, and consult the datasheet and application notes for guidance.
  • Exceeding the maximum ratings can lead to reduced reliability, performance degradation, or even device failure. Ensure that the device operates within the recommended specifications to prevent damage or premature failure.
