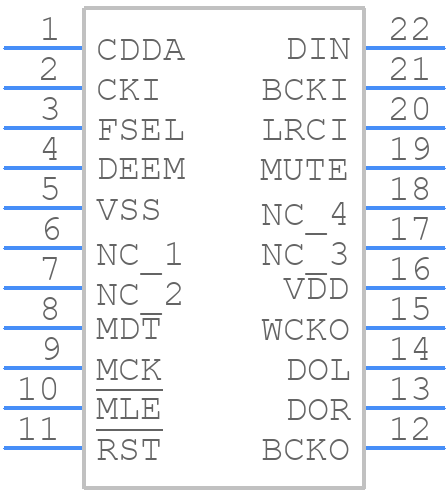

SM5840JS - NPC

SM5840JS Details

• Manufacturer Part Number:

  SM5840JS

• Part Life Cycle Code:

  Transferred

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nippon Precision Circuits Inc

• JESD-30 Code:

  R-PDSO-G22

• JESD-609 Code:

  e0

• Number of Terminals:

  22

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP22,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  40 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, DIGITAL FILTER
