SM5S45CAHM3/I - Vishay

Description: ESD Suppressors / TVS Diodes 5W 45V 5% BIDIR SMD PAR

Download SM5S45CAHM3/I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SM5S45CAHM3/I - Vishay - PCB symbol
click to zoom
PCB Footprints

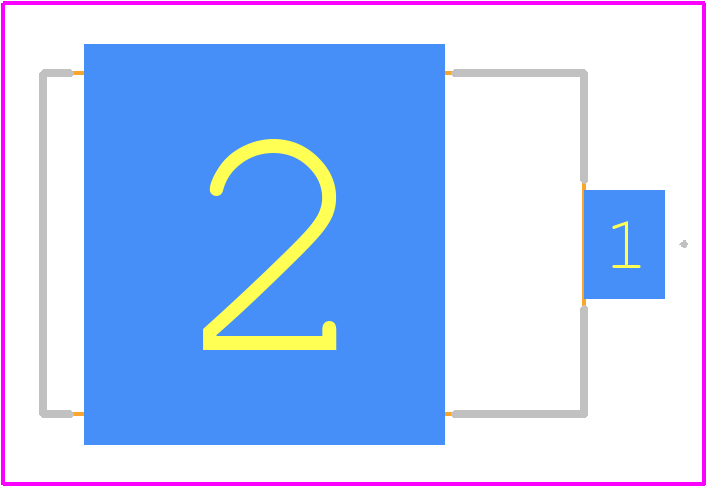

SM5S45CAHM3/I - Vishay PCB footprint - Other - Other - SM5S45CAHM3/I-4
click to zoom
3D Models
SM5S45CAHM3/I - Vishay - 3D model - Other - SM5S45CAHM3/I-4
click to zoom

SM5S45CAHM3/I Details

  • Manufacturer Part Number:

    SM5S45CAHM3/I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM5S45CAHM3/I Overview

Use the download button to access the SM5S45CAHM3/I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM5S4, or try a keyword search, such as Transient Suppressors
