SM806022UMG-TR - Microchip

Description: Clock Generators & Support Products Flexible Ultra-Low Jitter Clock Generator, 2 output, OE, FS, Crystal Reference

Download SM806022UMG-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

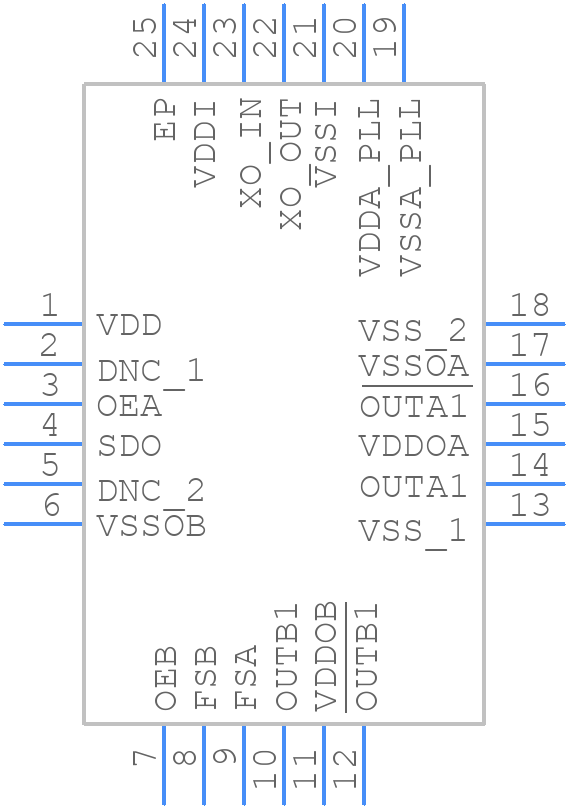

SM806022UMG-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
SM806022UMG-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Very Thin Plastic Quad Flat, No Lead Package (9KX) - 4x4 mm Body [VQFN]
click to zoom
3D Models
SM806022UMG-TR - Microchip - 3D model - Quad Flat No-Lead - 24-Lead Very Thin Plastic Quad Flat, No Lead Package (9KX) - 4x4 mm Body [VQFN]
click to zoom

SM806022UMG-TR Details

  • Manufacturer Part Number:

    SM806022UMG-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    IT ALSO OPERATES AT 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    875 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    875 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SM806022UMG-TR Frequently Asked Questions (FAQs)

  • Microchip recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
  • To ensure reliable operation, follow the recommended operating conditions, including voltage, current, and temperature ranges. Also, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
  • The SM806022UMG-TR has built-in ESD protection, but it's still important to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The SM806022UMG-TR is a commercial-grade device, but Microchip offers other versions with enhanced reliability and safety features, such as the SM806022UMG-VL or SM806022UMG-HT, which may be suitable for high-reliability or safety-critical applications.
  • Microchip recommends following the JEDEC J-STD-020 standard for soldering and rework conditions, including peak temperatures, dwell times, and soldering techniques to ensure reliable assembly and minimize damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM806022UMG-TR Overview

Use the download button to access the SM806022UMG-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM806, or try a keyword search, such as Clock Generators

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
