SM91047EL - Bourns

Description: Audio Transformers / Signal Transformers FLYBACK XFMER

Download SM91047EL Model

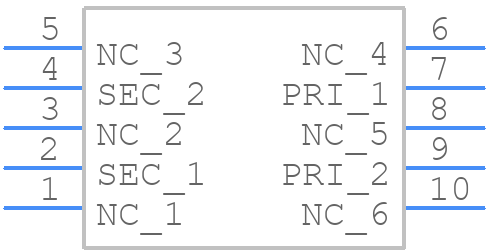

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM91047EL - Bourns PCB footprint - Other - Other - SM91047EL-2
click to zoom
3D Models
SM91047EL - Bourns  - 3D model - Other - SM91047EL-2
click to zoom

SM91047EL Details

  • Manufacturer Part Number:

    SM91047EL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • Additional Feature:

    LENGTH, WIDTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

  • Height:

    12.7 mm

  • JESD-609 Code:

    e3

  • Length:

    17.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 12 INCH

  • Primary Inductance:

    5 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13.5 mm
