SM91074ALE - Bourns

Description: Audio Transformers / Signal Transformers 10/100 BASE-T xfrmer AEC-Q200 compliant

Download SM91074ALE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

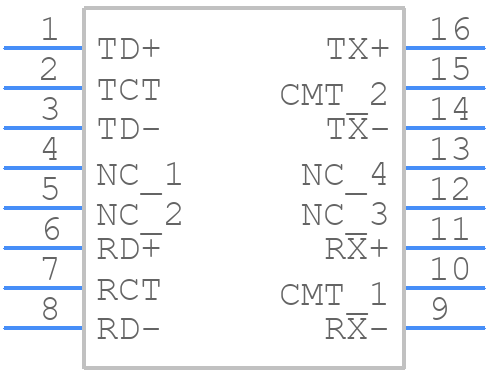

Symbol
SM91074ALE - Bourns - PCB symbol
click to zoom
PCB Footprints
SM91074ALE - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - SM91074ALE
click to zoom
3D Models
SM91074ALE - Bourns - 3D model - Small Outline Packages - SM91074ALE
click to zoom

SM91074ALE Details

  • Manufacturer Part Number:

    SM91074ALE

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Application:

    10/100 BASE-T

  • Approvals:

    AEC-Q200

  • Height:

    5.65 mm

  • Isolation Voltage:

    2250 V

  • Length:

    12.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Nickel/Copper (Sn/Ni/Cu)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    6.9 mm

SM91074ALE Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimal signal loss, and reduced EMI.
  • The SM91074AL-E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
  • The SM91074AL-E is rated for operation from -40°C to 125°C. However, it's essential to consider the specific application and potential thermal gradients that may affect the device's performance and reliability.
  • The SM91074AL-E is designed to withstand moderate vibration and shock. However, it's crucial to evaluate the specific environmental conditions and consider additional mechanical support or mounting options to ensure the device's reliability and performance.
  • Bourns provides application notes and technical support resources to help troubleshoot common issues. It's also recommended to consult with experienced engineers or seek guidance from Bourns' technical support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM91074ALE Overview

Use the download button to access the SM91074ALE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM910, or try a keyword search, such as Pulse/Datacom Transformers
