SM91509AL-E - Bourns

Description: Telecom Transformer 1:1 1.2Ohm Prim. DCR 1.2Ohm Sec. DCR 12 Terminal Gull Wing SMD Automotive

Download SM91509AL-E Model

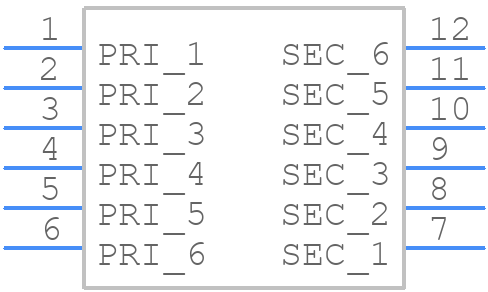

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM91509AL-E - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - 12-PIN SMD
click to zoom
3D Models
SM91509AL-E - Bourns  - 3D model - Small Outline Packages - 12-PIN SMD
click to zoom

SM91509AL-E Details

  • Manufacturer Part Number:

    SM91509AL-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Application:

    BATTERY MANAGEMENT SYSTEM

  • Approvals:

    AEC-Q200

  • Height:

    5 mm

  • Isolation Voltage:

    4300 V

  • Length:

    14.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    600 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    11.68 mm

SM91509AL-E Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane is also recommended.
  • The SM91509AL-E is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, and avoiding high-power dissipation or high-temperature environments that may exceed the rated temperature range.
  • Bourns recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize parasitic inductance.
  • The EN pin should be pulled high during normal operation and pulled low during shutdown. Ensure a clean power-up and power-down sequence by using a slow-rising clock signal or a power-up reset circuit to prevent unwanted switching.
  • The maximum allowed output capacitance is 47uF. Exceeding this value may cause instability or oscillations in the output voltage. It's recommended to use a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM91509AL-E Overview

Use the download button to access the SM91509AL-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM915, or try a keyword search, such as Pulse/Datacom Transformers
