Part Image

SMA-A0207BTNT100K - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Length .232 INCH | Product Length 5.9 MM | Product Diameter 2.2 MM | Product Diameter .087 INCH | Electrical Characteristics: Passive Component Tolerance .1 PCT | Power Rating 1 WATT | Resistance Class 1kΩ – 1MΩ | Resistance Value 100K OHM | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Resistor Type Precision Resistor | Package Size Code 0207 | Element Type Thin Film | Termination Features: Number of Term

Download SMA-A0207BTNT100K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMA-A0207BTNT100K - TE Connectivity - PCB symbol
click to zoom

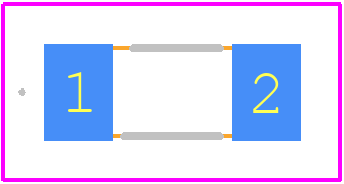

PCB Footprints
SMA-A0207BTNT100K - TE Connectivity PCB footprint - Other - Other - SMA-A0207BTNT100K-2
click to zoom

SMA-A0207BTNT100K Details

  • Manufacturer Part Number:

    SMA-A0207BTNT100K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    PRECISION

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    MELF

  • Packing Method:

    TR

  • Physical Dimension:

    5.9mm x 2.2mm

  • Rated Power Dissipation (P):

    1 W

  • Resistance:

    100000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    0207

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    15 ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    0.1%

SMA-A0207BTNT100K Frequently Asked Questions (FAQs)

  • The recommended torque for the SMA connector is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the SMA-A0207BTNT100K is designed to be compatible with other SMA connectors from different manufacturers, as it follows the standard SMA interface specification.
  • The maximum operating temperature for the SMA-A0207BTNT100K is 125°C (257°F).
  • Yes, the SMA-A0207BTNT100K is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and other high-reliability applications.
  • Yes, the SMA-A0207BTNT100K is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMA-A0207BTNT100K Overview

Use the download button to access the SMA-A0207BTNT100K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SMA-A, or try a keyword search, such as Thin Film Resistors
