SMA-A0207BTNT1K0 - TE Connectivity

Description: 1kΩ 0207 Thin Film Surface Mount Fixed Resistor ±0.01 %, ±0.1 % 1W SMA-A0207BTNT1K0

Download SMA-A0207BTNT1K0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMA-A0207BTNT1K0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

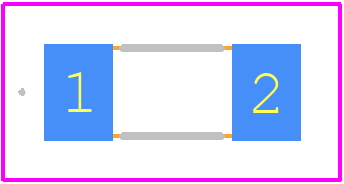

SMA-A0207BTNT1K0 - TE Connectivity PCB footprint - Other - Other - SMA-A0207BTNT1K0-2
click to zoom

SMA-A0207BTNT1K0 Details

  • Manufacturer Part Number:

    SMA-A0207BTNT1K0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    PRECISION

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    MELF

  • Packing Method:

    TR

  • Physical Dimension:

    5.9mm x 2.2mm

  • Rated Power Dissipation (P):

    1 W

  • Resistance:

    1000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    0207

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    15 ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    0.1%

SMA-A0207BTNT1K0 Frequently Asked Questions (FAQs)

  • The recommended torque for the SMA connector is 0.5-0.7 Nm (7-10 in-lbs) to ensure proper mating and prevent damage.
  • Yes, the SMA-A0207BTNT1K0 is designed to be compatible with other SMA connectors from different manufacturers, as it follows the industry-standard SMA interface.
  • The operating temperature range for the SMA-A0207BTNT1K0 is -65°C to 165°C (-85°F to 329°F), making it suitable for a wide range of applications.
  • The SMA-A0207BTNT1K0 is designed for low-power applications up to 1 GHz. For high-power applications, it's recommended to use a high-power SMA connector specifically designed for that purpose.
  • Yes, the SMA-A0207BTNT1K0 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.
