SMA-A0207BTNT680R - TE Connectivity

Description: 680Ω 0207 Thin Film Surface Mount Fixed Resistor ±0.01 %, ±0.1 % 1W SMA-A0207BTNT680R

Download SMA-A0207BTNT680R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMA-A0207BTNT680R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

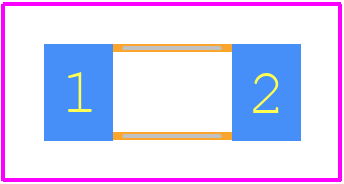

SMA-A0207BTNT680R - TE Connectivity PCB footprint - Other - Other - SMA-A0207BTNT680R-2
click to zoom

SMA-A0207BTNT680R Details

  • Manufacturer Part Number:

    SMA-A0207BTNT680R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    PRECISION

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    MELF

  • Packing Method:

    TR

  • Physical Dimension:

    5.9mm x 2.2mm

  • Rated Power Dissipation (P):

    1 W

  • Resistance:

    680 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    0207

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    15 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    0.1%
