SMA130 - BOSCH

Description: Triaxial Accelerometer

Download SMA130 Model

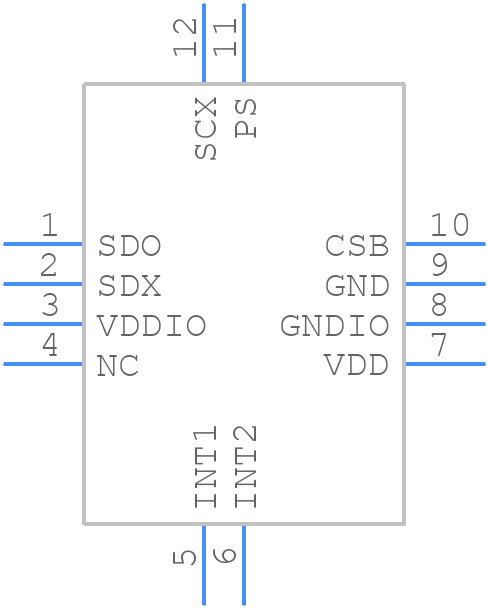

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SMA130 - BOSCH PCB footprint - Other - Other - SMA130-2
click to zoom
3D Models
SMA130 - BOSCH  - 3D model - Other - SMA130-2
click to zoom

SMA130 Details

  • Manufacturer Part Number:

    SMA130

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, 0.95 MM HEIGHT, ROHS COMPLIANT, LGA-12

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Bosch Sensortec

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XBGA-N12

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

SMA130 Frequently Asked Questions (FAQs)

  • The SMA130 is a sensitive device and requires careful PCB layout and placement to minimize noise and interference. It's recommended to place the SMA130 close to the center of the PCB, away from high-frequency components and cables. A ground plane underneath the device is also recommended to reduce noise.
  • The SMA130 does not require calibration in the classical sense. However, it's recommended to perform a self-test function to verify the device's functionality and accuracy. The self-test function can be initiated by setting the ST bit in the CTRL_REG1 register.
  • The maximum sampling rate of the SMA130 is 1.6 kHz. However, the device can operate in low-power mode with a reduced sampling rate of 100 Hz or 400 Hz.
  • The SMA130 generates interrupts on events such as data ready, FIFO overflow, and free-fall detection. Interrupts can be handled by configuring the INT1 and INT2 pins and using an interrupt service routine (ISR) to process the interrupt events.
  • The power consumption of the SMA130 varies depending on the operating mode. In low-power mode, the device consumes approximately 10 μA. In normal mode, the device consumes approximately 130 μA. In high-performance mode, the device consumes approximately 400 μA.
