SMA5101-TL-H - onsemi

Description: Wide band: up to Ku band; High conversion gain: -0.5 dB (@ 450 MHz); Low distortion: IIP3 = 20 dBm (@ ICC >11 mA); Low voltage available: 1.2 V and above; SMT, ultra small package: 2.0 x 2.1 x 0.85 mm

Download SMA5101-TL-H Model

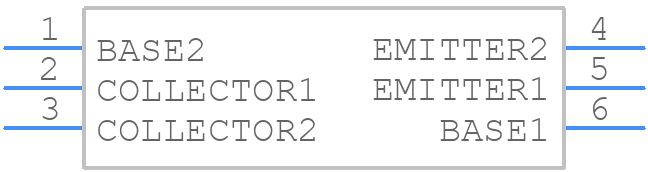

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SMA5101-TL-H - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SC−88FL / MCPH6 CASE 419AS ISSUE A
click to zoom
3D Models
SMA5101-TL-H - onsemi  - 3D model - SO Transistor Flat Lead - SC−88FL / MCPH6 CASE 419AS ISSUE A
click to zoom

SMA5101-TL-H Details

  • Manufacturer Part Number:

    SMA5101-TL-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SC 88FL / MCPH6

  • Pin Count:

    6

  • Manufacturer Package Code:

    419AS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    30

SMA5101-TL-H Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the SMA5101-TL-H package, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • For EMI and RFI shielding, it's essential to use a shielded enclosure, keep the SMA5101-TL-H away from the enclosure edges, and use a multi-layer PCB with a dedicated ground plane. Additionally, consider using EMI filters or ferrite beads on the input and output lines to reduce emissions.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the output voltage is within the specified range, and verify that the feedback resistors are correctly connected. Also, check for any signs of overheating or thermal shutdown.
  • The recommended input and output capacitors for optimal performance are low-ESR ceramic capacitors with a value of 10uF to 22uF. The input capacitor should be placed as close to the VIN pin as possible, and the output capacitor should be placed as close to the VOUT pin as possible.
