Description:Features
• For Surface Mount Application in Order to Optimize Board Space
• Fast Response Time: Typical Less Than 1.0ps From 0 Volts to
VBR Minimum
• Low Inductance
• Low Profile Package
• Excellent Clamping Capability
• Halogen Free. “Green” Device (Note 1)
• Moisture Sensitivity Level 1
• Epoxy Meets UL 94 V-0 Flammability Rating
• Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates
Compliant. See Ordering Information)
• For Bidirectional Devices Add “C” To The Suffix of
The Part N
The recommended land pattern for the SMCJ1.5KE220CA-TP can be found in the Micro Commercial Components' application note or on their website. It typically includes a recommended pad size, spacing, and layout to ensure proper soldering and thermal performance.
While the SMCJ1.5KE220CA-TP has a high-temperature rating of 150°C, it's essential to consider the derating curves and thermal resistance to ensure the device operates within its specified limits. Consult the datasheet and application notes for more information.
To prevent damage, handle the SMCJ1.5KE220CA-TP by the body, avoid touching the leads or the glass passivation, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD). Follow standard ESD handling procedures and consult the manufacturer's guidelines.
The SMCJ1.5KE220CA-TP is a TVS diode designed for transient voltage suppression, not high-frequency applications. While it may work in some high-frequency circuits, it's essential to evaluate its performance and consider alternative components specifically designed for high-frequency use.
The SMCJ1.5KE220CA-TP is a unique part number from Micro Commercial Components. However, similar devices from other manufacturers may include the 1.5KE220A from Diodes Incorporated, the SMAJ1.5KE220 from ON Semiconductor, or the P6KE220 from Littelfuse. Verify the specifications and performance before substituting devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMCJ1.5KE220CA-TP Overview

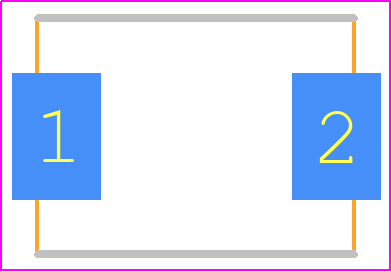

Use the download button to access the SMCJ1.5KE220CA-TP schematic symbol, PCB footprint, and 3D model.
