SMCJ58CA-Q - Bourns

Description: ESD Suppressors / TVS Diodes 58volts 1.5kW 5% Bi-Dir. AEC-Q101

Download SMCJ58CA-Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMCJ58CA-Q - Bourns - PCB symbol
click to zoom
PCB Footprints

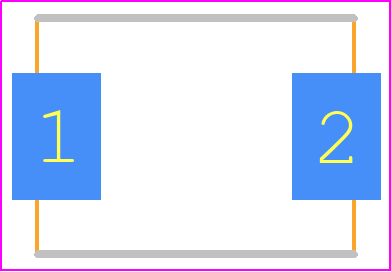

SMCJ58CA-Q - Bourns PCB footprint - Diodes Moulded Non Polarised - Diodes Moulded Non Polarised - SMC (DO-214AB)
click to zoom
3D Models
SMCJ58CA-Q - Bourns - 3D model - Diodes Moulded Non Polarised - SMC (DO-214AB)
click to zoom

SMCJ58CA-Q Details

  • Manufacturer Part Number:

    SMCJ58CA-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.91

  • Additional Feature:

    PRSM-MIN

  • Breakdown Voltage-Max:

    71.2 V

  • Breakdown Voltage-Min:

    64.4 V

  • Breakdown Voltage-Nom:

    67.8 V

  • Clamping Voltage-Max:

    121.7 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    58 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    58 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SMCJ58CA-Q Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SMCJ58CA-Q can be found in the Bourns application note AN164, which provides guidelines for PCB layout and land pattern design.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the Bourns application note AN165. Additionally, use a solder with a melting point above 217°C to prevent damage to the component.
  • The SMCJ58CA-Q has an operating temperature range of -40°C to +150°C, but it's recommended to derate the component's voltage and current ratings above 125°C to ensure reliable operation.
  • While the SMCJ58CA-Q is primarily designed for ESD protection, it can be used in high-frequency applications up to 1 GHz. However, it's essential to consider the component's parasitic inductance and capacitance when designing the circuit.
  • Select the correct SMCJ58CA-Q variant based on the required voltage rating, capacitance value, and package type. Consult the Bourns product catalog or website for a detailed selection guide and to ensure the chosen variant meets your application's requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMCJ58CA-Q Overview

Use the download button to access the SMCJ58CA-Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMCJ5, or try a keyword search, such as Transient Suppressors
