SMD6FRA021 - Switchcraft

Description: DIN Connectors MINI-DIN GOLD-PLATE

Download SMD6FRA021 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMD6FRA021 - Switchcraft - PCB symbol
click to zoom
PCB Footprints

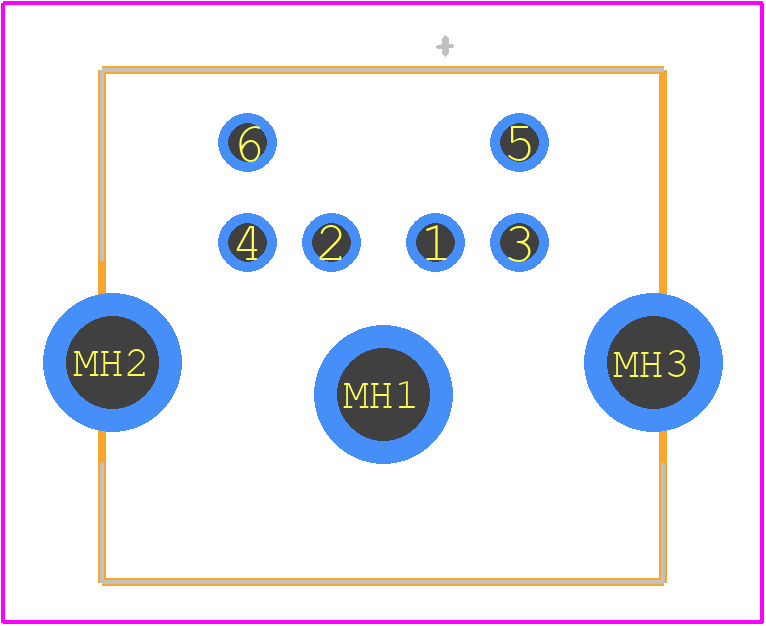

SMD6FRA021 - Switchcraft PCB footprint - Other - Other - SMD6FRA021-2
click to zoom
3D Models
SMD6FRA021 - Switchcraft - 3D model - Other - SMD6FRA021-2
click to zoom

SMD6FRA021 Details

  • Manufacturer Part Number:

    SMD6FRA021

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED, SHIELDED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.504 inch

  • Body Depth:

    0.502 inch

  • Body Length:

    0.552 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    250VDC V

  • EMI Shielded:

    YES

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    48.928 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN LEAD

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • Withdrawl Force-Min:

    8.0064 N

SMD6FRA021 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for SMD6FRA021 is a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. It's essential to follow the manufacturer's recommended soldering profile to ensure reliable connections and prevent damage to the component.
  • Yes, the SMD6FRA021 is compatible with lead-free soldering processes. The component is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The maximum operating temperature range for the SMD6FRA021 is -40°C to 125°C (-40°F to 257°F). Operating the component outside this temperature range may affect its performance and reliability.
  • Yes, the SMD6FRA021 is designed to withstand high-vibration and high-shock applications. The component's rugged construction and secure mounting features make it suitable for use in demanding environments.
  • The recommended torque specification for the SMD6FRA021's screw terminals is 0.5-1.5 N·m (4-12 in·lb). Over-tightening or under-tightening the screw terminals can affect the component's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMD6FRA021 Overview

Use the download button to access the SMD6FRA021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMD6F, or try a keyword search, such as DIN Connectors
