SMDA15C-8.TBT - SEMTECH

Description: 24V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount 14-SOIC

Download SMDA15C-8.TBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

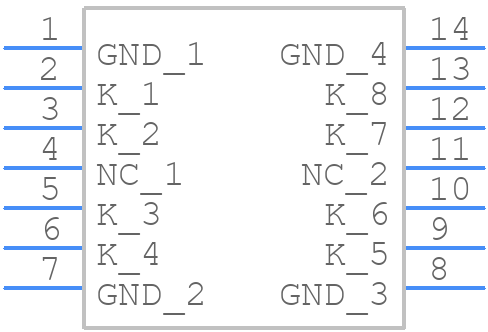

SMDA15C-8.TBT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
SMDA15C-8.TBT - SEMTECH PCB footprint - Small Outline Packages - Small Outline Packages - SO-14
click to zoom
3D Models
SMDA15C-8.TBT - SEMTECH - 3D model - Small Outline Packages - SO-14
click to zoom

SMDA15C-8.TBT Details

  • Manufacturer Part Number:

    SMDA15C-8.TBT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.46

  • Breakdown Voltage-Min:

    16.7 V

  • Breakdown Voltage-Nom:

    6 V

  • Clamping Voltage-Max:

    9.8 V

  • Configuration:

    COMMON ANODE, 10 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MS-012AB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    300 W

  • Number of Elements:

    10

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    15 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

SMDA15C-8.TBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 5V power supply, and the recommended biasing is to connect the VCC pin to 5V through a 10uF capacitor, and the GND pin to ground through a 10uF capacitor. The EN pin should be tied to VCC for normal operation.
  • The device is rated for operation from -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
  • Check the power supply voltage, ensure proper biasing, and verify the input and output signals. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The SMDA15C-8.TBT is a commercial-grade device, but Semtech Corporation offers a range of high-reliability and aerospace-grade devices. Contact Semtech Corporation for more information on their high-reliability product offerings.
