SMF05C.TCT - SEMTECH

Description: Semtech SMF05C.TCT, Quint-Element Uni-Directional TVS Diode, 100W, 6-Pin SOT-363 (SC-70)

Download SMF05C.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

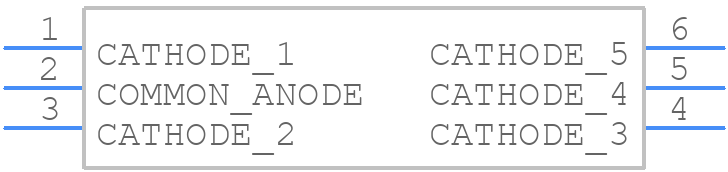

Symbol
SMF05C.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
SMF05C.TCT - SEMTECH PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363
click to zoom
3D Models
SMF05C.TCT - SEMTECH - 3D model - SOT23 (6-Pin) - SOT-363
click to zoom

SMF05C.TCT Details

  • Manufacturer Part Number:

    SMF05C.TCT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-70

  • Package Description:

    SC-70, 6 PIN

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.01

  • Breakdown Voltage-Min:

    6 V

  • Clamping Voltage-Max:

    12.5 V

  • Configuration:

    COMMON ANODE, 5 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-203AB

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    100 W

  • Number of Elements:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

SMF05C.TCT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The SMF05C.TCT requires a bias voltage of 3.3V or 5V. Ensure the bias voltage is stable and noise-free. Use a voltage regulator or a low-dropout regulator to regulate the bias voltage.
  • The SMF05C.TCT is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Use an oscilloscope to check the input and output signals. Verify the bias voltage and power supply. Check for noise and interference on the signal lines. Consult the datasheet and application notes for troubleshooting guidelines.
  • The SMF05C.TCT is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Consult with Semtech Corporation or a qualified representative to determine the device's suitability for such applications.
