Description:Protects up to 5 Lines in a Single SC-88 Package; Peak Power Dissipation - 100W (8x20 µ Waveform); ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model; Compliance with IEC 61000-4-2 (ESD) 15 kV (Air), 8 kV (Contact); UL Flammability Rating of 94V-0; AEC-Q101 Qualified and PPAP Capable; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
A good PCB layout for the SMF05CT1G involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common ground point for the input and output grounds.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the device, and avoid applying excessive force that could damage the package.
The SMF05CT1G has a junction-to-ambient thermal resistance of 25°C/W. To ensure reliable operation, keep the device temperature below 150°C. Use a heat sink or thermal pad to improve heat dissipation, especially in high-power applications.
Yes, the SMF05CT1G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is manufactured using a process that ensures high reliability and low defect rates.
Store the SMF05CT1G in its original packaging or an equivalent ESD-protective package. Avoid exposing the device to moisture, extreme temperatures, or physical stress. Handle the device by the body, not the leads, to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMF05CT1G Overview

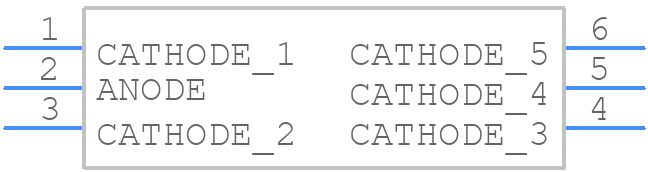

Use the download button to access the SMF05CT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMF05,
or try a keyword search, such as Transient Suppressors
