SMIQ-5143H+ - Mini-Circuits

Description: RF Mixer Level 18, MMIC SMT IQ Mixer, RF/LO Freq 5 - 14 GHz

Download SMIQ-5143H+ Model

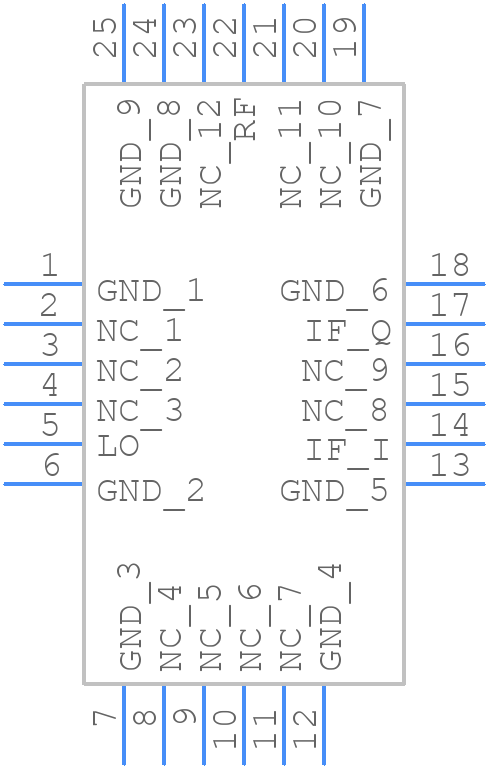

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SMIQ-5143H+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom
3D Models
SMIQ-5143H+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom

SMIQ-5143H+ Details

  • Manufacturer Part Number:

    SMIQ-5143H+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • RF/Microwave Device Type:

    IMAGE REJECTION

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMIQ-5143H+ Overview

Use the download button to access the SMIQ-5143H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMIQ-, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
