SML-H1505SIUGUBCTR - Lumex

Description: Lumex SML-H1505SIUGUBCTR RGB LED, 465 / 520 / 635 nm, 1505 Diffused, Dome Lens SMD Package

Download SML-H1505SIUGUBCTR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SML-H1505SIUGUBCTR model

Email notifications will be applied after download.

Send part feedback

Symbol

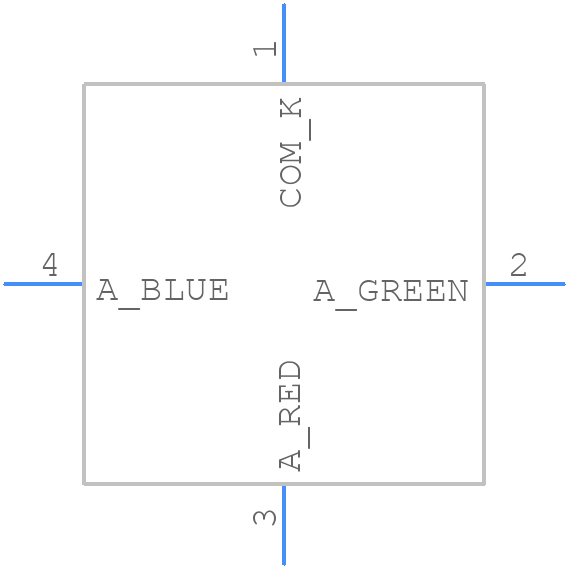

SML-H1505SIUGUBCTR - Lumex - PCB symbol

PCB Footprints

SML-H1505SIUGUBCTR - Lumex PCB footprint - Other - Other - SML-H1505SIUGUBCTR-3

3D Models

SML-H1505SIUGUBCTR - Lumex - 3D model - Other - SML-H1505SIUGUBCTR-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for SML-H1505SIUGUBCTR
Part Number SML-H1505SIUGUBCTR
Manufacturer Lumex
Pin Count 4
Part Category LED
Package Category Other
Footprint Name Other - SML-H1505SIUGUBCTR-3
Released Date Jan 15, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SML-H1505SIUGUBCTR Details

Manufacturer Part Number:
SML-H1505SIUGUBCTR
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
HTS Code:
8541.40.20.00
Manufacturer:
ITW Lumex
YTEOL:
2
Optoelectronic Device Type:
TRIPLE COLOR LED
