The recommended reflow soldering temperature profile for SML-LX0606IGC-TR is 260°C peak temperature with a dwell time of 10-30 seconds above 220°C.
Yes, SML-LX0606IGC-TR is compatible with lead-free soldering and is RoHS compliant.
The moisture sensitivity level (MSL) of SML-LX0606IGC-TR is MSL 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before soldering.
While SML-LX0606IGC-TR is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as UV, humidity, and temperature extremes.
The typical binning and sorting criteria for SML-LX0606IGC-TR are based on luminous intensity, color temperature, and forward voltage. Devices are sorted into different bins based on these parameters to ensure consistency and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SML-LX0606IGC-TR Overview

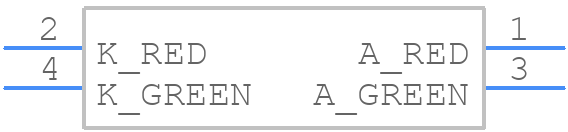

Use the download button to access the SML-LX0606IGC-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SML-L,
or try a keyword search, such as Visible LEDs
