SMLP36RGB2W3R - ROHM Semiconductor

Description: LED,RGB,35/110/35mcd,top-looking,1510 ROHM SMLP36RGB2W3R, SML-P36 Series 3 RGB LED, 475 (Blue) nm, 535 (Green) nm, 629 (Red) nm 6-Pin Milky White

Download SMLP36RGB2W3R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

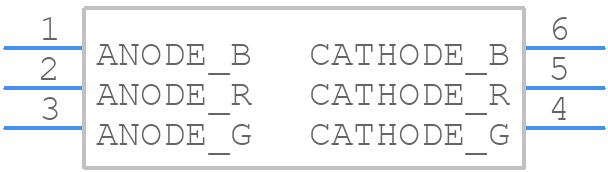

SMLP36RGB2W3R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
SMLP36RGB2W3R - ROHM Semiconductor PCB footprint - Other - Other - ROHM-1510-(0604)
click to zoom

SMLP36RGB2W3R Details

  • Manufacturer Part Number:

    SMLP36RGB2W3R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.01 A

  • Forward Voltage-Max:

    2.1 V

  • JESD-609 Code:

    e4

  • Lens Type:

    MILKY WHITE

  • Luminous Intensity-Nom:

    35.0/110.0/35.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    0.2 mm

  • Packing Method:

    TR, 7 INCH

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    1.5 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Pitch:

    0.83 mm

SMLP36RGB2W3R Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SMLP36RGB2W3R is -30°C to 60°C.
  • While SMLP36RGB2W3R is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum current rating for each color channel (R, G, and B) is 30mA.
  • To ensure reliability in high-temperature applications, it is recommended to derate the current and voltage according to the temperature derating curve provided in the datasheet.
  • While SMLP36RGB2W3R is not AEC-Q101 qualified, it can be used in automotive applications with proper validation and testing to ensure compliance with automotive standards.
