The recommended storage temperature for SMLV56RGB1W1 is -30°C to 40°C, as specified in the datasheet. However, it's essential to note that storage at high temperatures (above 30°C) for extended periods may affect the component's reliability and lifespan.
While the SMLV56RGB1W1 is a high-brightness LED, it's not specifically designed for outdoor use. If you plan to use it outdoors, ensure proper protection from environmental factors like moisture, UV, and extreme temperatures. Consider using a suitable enclosure or applying a protective coating to ensure reliability.
The maximum allowable current for the SMLV56RGB1W1 is 30mA per channel (R, G, and B). Exceeding this current may reduce the component's lifespan or cause damage. Always ensure your design operates within the recommended current ratings.
Proper thermal management is crucial for the SMLV56RGB1W1. Ensure good heat dissipation by providing a sufficient heat sink, using thermal interface materials, and keeping the component away from heat sources. The recommended operating temperature range is -30°C to 85°C.
Yes, ROHM Semiconductor recommends following the standard reflow soldering profile for the SMLV56RGB1W1. The peak temperature should not exceed 260°C, and the soldering time should be within 10 seconds. Always follow the recommended soldering profile to prevent damage to the component.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMLV56RGB1W1 Overview

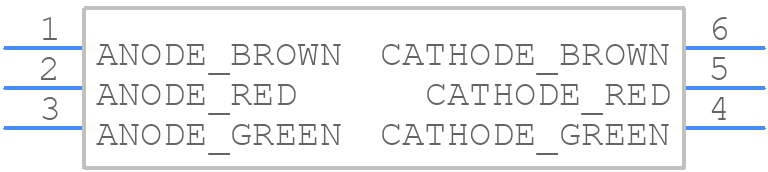

Use the download button to access the SMLV56RGB1W1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMLV5,
or try a keyword search, such as Visible LEDs
