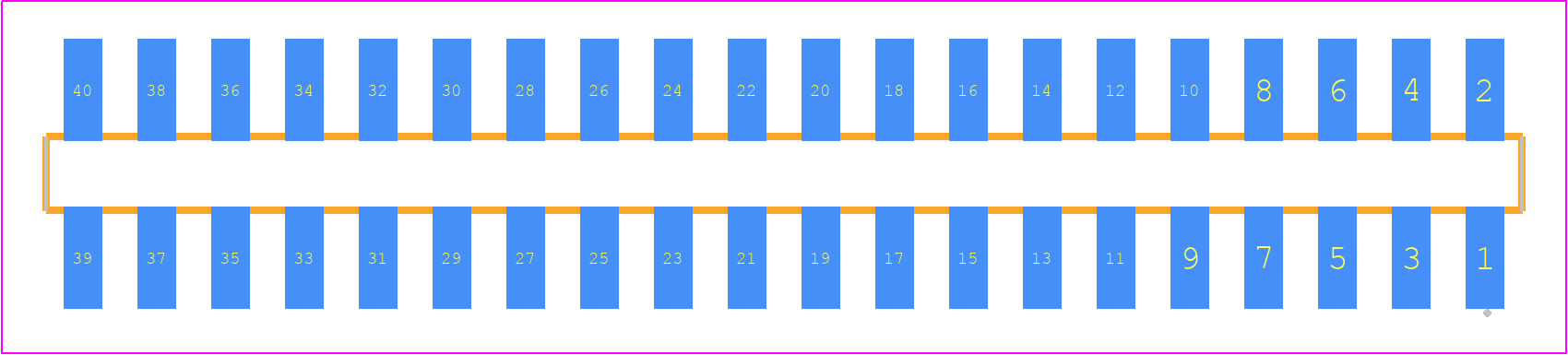

SMM-120-02-H-D-K - SAMTEC

SMM-120-02-H-D-K Details

• Manufacturer Part Number:

  SMM-120-02-H-D-K

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Direct Group:

  CH40060802123030800101010105005YY02YY07081302

• Similar Group:

  CH40060802123030800101010105005YY02YY07

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  12

• Body Breadth:

  0.158 inch

• Body Depth:

  0.145 inch

• Body Length:

  1.574 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  BERYLLIUM COPPER

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• Filter Feature:

  NO

• Insertion Force-Max:

  .556 N

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  4.5466 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  3.2 A

• Reference Standard:

  UL

• Terminal Pitch:

  2.0066 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• Withdrawl Force-Min:

  .417 N
