SMP-PC-P-HG-ST-TH2 - SAMTEC

Description: RF / Coaxial Connector, Catcher, SMP Coaxial, Straight Plug, Through Hole Vertical, 50 ohmCopied

Download SMP-PC-P-HG-ST-TH2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

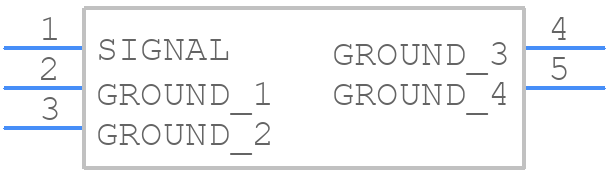

SMP-PC-P-HG-ST-TH2 - SAMTEC - PCB symbol
click to zoom
PCB Footprints
SMP-PC-P-HG-ST-TH2 - SAMTEC PCB footprint - Other - Other - SMP-PC-P-HG-ST-TH2-1
click to zoom
3D Models
SMP-PC-P-HG-ST-TH2 - SAMTEC - 3D model - Other - SMP-PC-P-HG-ST-TH2-1
click to zoom

SMP-PC-P-HG-ST-TH2 Details

  • Manufacturer Part Number:

    SMP-PC-P-HG-ST-TH2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    40 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

  • VSWR:

    1.5

SMP-PC-P-HG-ST-TH2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connection without damaging the terminals.
  • Yes, the SMP-PC-P-HG-ST-TH2 is designed to withstand high-vibration environments, but it's recommended to follow Samtec's guidelines for vibration testing and ensure proper mounting and screw torque to ensure reliable connection.
  • The maximum operating temperature for the SMP-PC-P-HG-ST-TH2 is 125°C (257°F), but it's recommended to derate the temperature range based on the specific application and environmental conditions.
  • Yes, the SMP-PC-P-HG-ST-TH2 is designed for high-frequency applications up to 40 GHz, but it's recommended to consult Samtec's high-frequency design guidelines and perform signal integrity analysis to ensure optimal performance.
  • The recommended mating cycle for the SMP-PC-P-HG-ST-TH2 is 500-1000 cycles, but this may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMP-PC-P-HG-ST-TH2 Overview

Use the download button to access the SMP-PC-P-HG-ST-TH2 schematic symbol, PCB footprint, and 3D model.
