SMP04EPZ - Analog Devices

SMP04EPZ Details

• Manufacturer Part Number:

  SMP04EPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

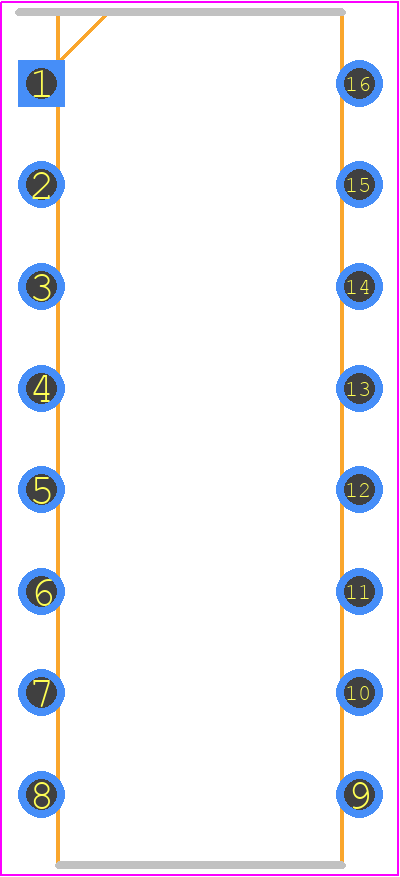

• Manufacturer Package Code:

  N-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Acquisition Time-Max:

  11 µs

• Acquisition Time-Nom:

  9 µs

• Amplifier Type:

  SAMPLE AND HOLD CIRCUIT

• Analog Input Voltage-Max:

  7.5 V

• Analog Input Voltage-Min:

  -7.5 V

• Droop Rate-Max:

  0.025 V/s

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  20.13 mm

• Neg Supply Voltage Limit-Max:

  -8.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  7 mA

• Supply Voltage Limit-Max:

  8.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
