SMP6-RGB footprint, schematic symbol and 3D model by Bivar

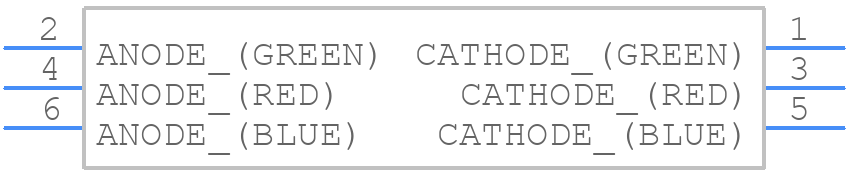

Symbol

PCB Footprints

SMP6-RGB Details

The recommended operating temperature range for SMP6-RGB is -40°C to 85°C.
To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the SMP6-RGB and follow proper PCB design and assembly guidelines.
The maximum current rating for each color channel of the SMP6-RGB is 20mA.
Yes, the SMP6-RGB can be used in outdoor applications, but it's recommended to apply a suitable protective coating and follow proper design and assembly guidelines to ensure reliability.
To achieve optimal brightness and color accuracy, it's recommended to use a constant current source and follow the recommended drive current and voltage guidelines outlined in the datasheet.

Community Provided

System Verified

Community Approved

Use the download button to access the SMP6-RGB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SMP6-, or try a keyword search, such as Visible LEDs
