The recommended mating sequence for the SMS-115-01-G-D connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
While the SMS-115-01-G-D connector is suitable for high-frequency applications, its performance may be limited by the contact material and design. For high-speed applications above 1 GHz, Samtec recommends using their high-speed connector series, such as the SEARAY or Q Strip.
The SMS-115-01-G-D connector has an operating temperature range of -55°C to +125°C, making it suitable for most industrial and commercial applications. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating range.
The SMS-115-01-G-D connector has a rugged design and is suitable for use in harsh environments. However, it's essential to ensure the connector is properly sealed and protected from environmental factors such as moisture, dust, and vibration. Samtec also offers specialized connectors with enhanced environmental sealing for extreme applications.
The recommended torque for the screw locks on the SMS-115-01-G-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow the recommended torque specification to ensure proper mating and prevent damage to the connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMS-115-01-G-D Overview

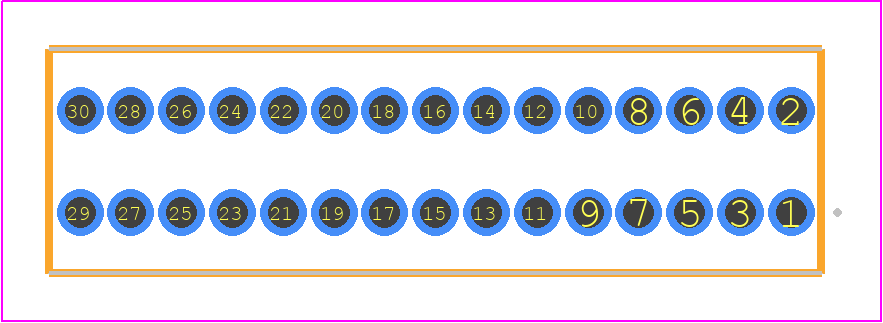

Use the download button to access the SMS-115-01-G-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SMS-1,
or try a keyword search, such as Headers and Edge Type Connectors
