SMS15T1G - onsemi

SMS15T1G Details

• Manufacturer Part Number:

  SMS15T1G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SC-74 (SC-59ML) 6 LEAD

• Package Description:

  LEAD FREE, CASE 318F-05, SC-74, SC-59ML, 6 PIN

• Pin Count:

  6

• Manufacturer Package Code:

  318F-05

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  6.38

• Breakdown Voltage-Max:

  18.5 V

• Breakdown Voltage-Min:

  16.7 V

• Breakdown Voltage-Nom:

  17.6 V

• Clamping Voltage-Max:

  24 V

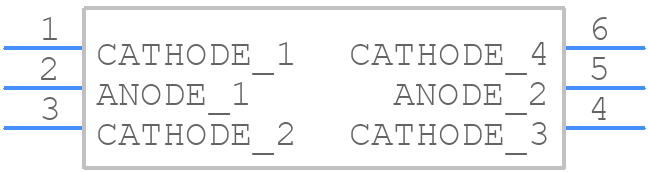

• Configuration:

  COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

• Diode Capacitance-Min:

  60 pF

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-G6

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  350 W

• Number of Elements:

  4

• Number of Terminals:

  6

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Power Dissipation-Max:

  0.225 W

• Qualification Status:

  Not Qualified

• Reference Standard:

  IEC-61000-4-2, 4-4, 4-5

• Rep Pk Reverse Voltage-Max:

  15 V

• Reverse Current-Max:

  1 µA

• Reverse Test Voltage:

  15 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
