SMS24CT1G - onsemi

Description: Protects up to 5 line in a single SC-74 package; Peak Power Dissipation - 350 W (8 X20 ?s Waveform); ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.; Compliance with IEC 61000-4-2 (ESD) 15 kV (Air), 8 kV (Contact); UL Flammability Rating of 94V-0

Download SMS24CT1G Model

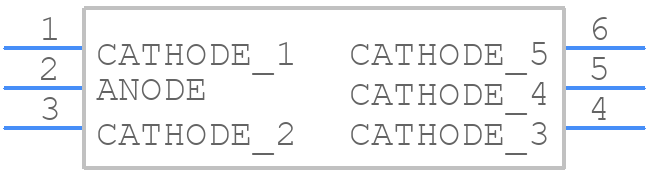

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SMS24CT1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP-6
click to zoom
3D Models
SMS24CT1G - onsemi  - 3D model - SOT23 (6-Pin) - TSOP-6
click to zoom

SMS24CT1G Details

  • Manufacturer Part Number:

    SMS24CT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    318G-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.28

  • Breakdown Voltage-Max:

    32 V

  • Breakdown Voltage-Min:

    26.7 V

  • Breakdown Voltage-Nom:

    6.7 V

  • Clamping Voltage-Max:

    14.5 V

  • Configuration:

    COMMON ANODE, 5 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    350 W

  • Number of Elements:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    24 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
