- Part Number SN37A14B
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - SN37A14B-2
- Released Date Mar 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SN37A14B Details
-
Manufacturer Part Number:
SN37A14B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Additional Feature:
LOW PROFILE, 94V-0
-
Body/Shell Style:
JACK
-
Configuration:
1X1 HORIZONTAL
-
Connector Type:
GENERAL PURPOSE AUDIO
SN37A14B Frequently Asked Questions (FAQs)
-
The recommended torque value for the SN37A14B connector is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
-
Yes, the SN37A14B connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
Yes, the SN37A14B connector is designed to operate in harsh environments, including extreme temperatures (-55°C to 125°C), humidity, and exposure to fluids and chemicals.
-
The SN37A14B connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
-
Yes, the SN37A14B connector is part of the SN37 series and is compatible with other connectors in the same series, allowing for flexibility in design and application.
Trust Checks
Expert Contribution
System Verified
Community Approved
SN37A14B Overview

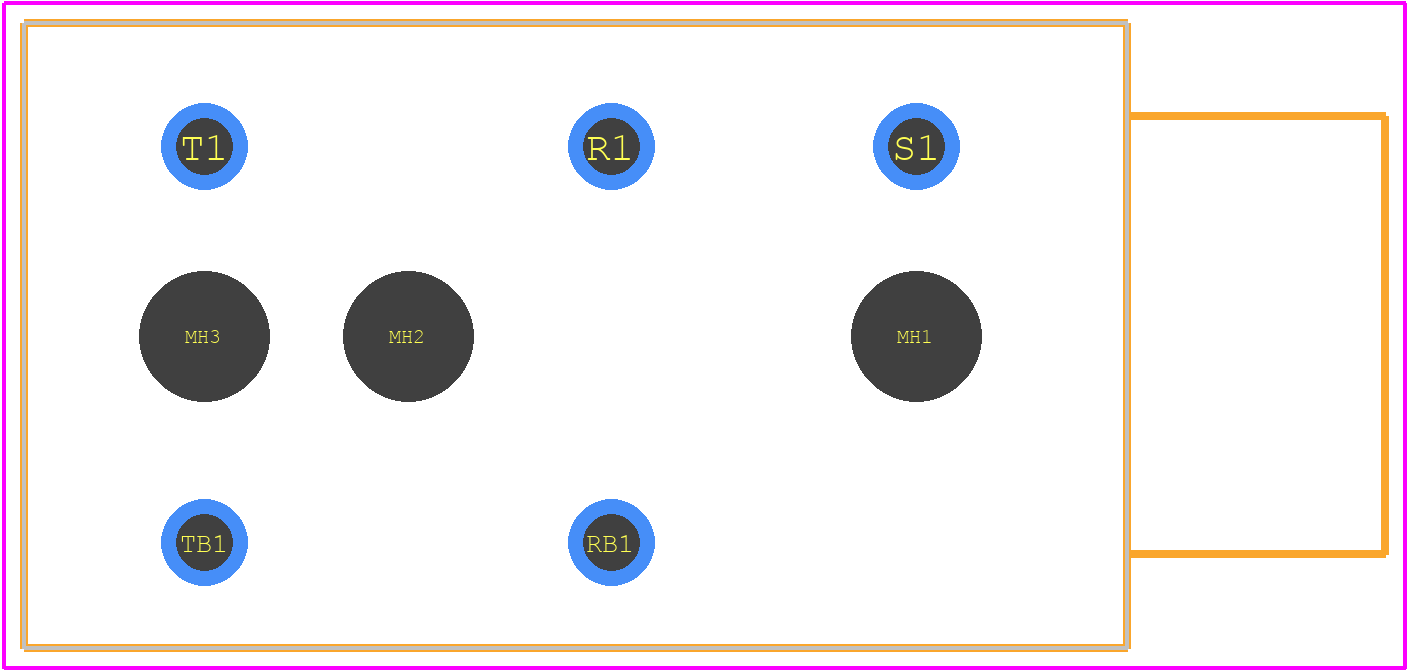

Use the download button to access the SN37A14B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN37A,
or try a keyword search, such as Audio/RCA Connectors
