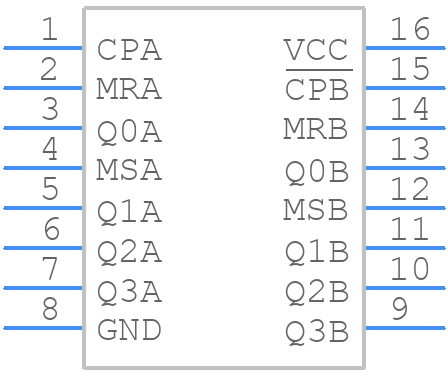

SN74LS490D - Motorola

SN74LS490D Details

• Manufacturer Part Number:

  SN74LS490D

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOIC-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Count Direction:

  UP

• Family:

  LS

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Length:

  9.9 mm

• Load Capacitance (CL):

  15 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  DECADE COUNTER

• Max Frequency@Nom-Sup:

  25000000 Hz

• Max I(ol):

  0.008 A

• Mode of Operation:

  ASYNCHRONOUS

• Number of Bits:

  4

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Power Supply Current-Max (ICC):

  26 mA

• Propagation Delay (tpd):

  54 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Trigger Type:

  NEGATIVE EDGE

• Width:

  3.9 mm

• fmax-Min:

  25 MHz
